02 used TOYOTA AIRJET WEAVING MACHINE, type JAT810/JAT710 -210

Item#005702

02 TOYOTA AIR-JET / air-jet weaving machines, type JAT810/JAT710 - 210 cm - E-Shed

consisting of:

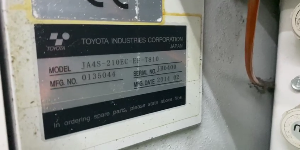

a) 1 Toyota air-jet weaving machine JAT 810, JA4S-210EC-EF T810

   Serial no. JB 0571 year of construction 05/2014 (no. 423), 4 weft colours,

   working width 2100 mm, shedding: 8 E-Shed motors, with accessories:

   5 heald frames in the machine with approx. 4600 used healds and drop wires

   4 yarn accumulators, 1 bobbin stand with 4 electronically adjustable brakes (Polsa Eltex)

   1 warp beam 1100 mm diameter, 1 reed Bluereed 81/10 in the machine

b) 1 Toyota air-jet weaving machine JAT 710, JA4SF-210 TE-EF-T710

   Serial no. JA 9160 year of construction 03/2012 (no. 421), 4 weft colours,

   working width 2100 mm, shedding: 8 E-Shed motors

   3 heald frames in the machine with approx. 4600 used healds and drop wires

   4 yarn accumulators, 1 bobbin stand

   1 warp beam 1100 mm diameter, 1 reed Bluereed 81/10 in the machine

Vff. 950 weft/min, shedding: 8 positions E-shed (per motor / heald frame), external fabric take-up (not included)

c) Extensive spare parts and accessories package:

Box A: 2 spreader holders 1 assortment box: stretching nozzle, auxiliary blade

                          9 leno bobbins Weft stop motion

                          2 solenoid bobbins 1 assortment box: scissor parts

                          1 fan proximity switch 1 assortment box: nozzles, leno parts

                          1 box of leno parts CD's, various hoses

Box B: 1 assortment box: various screws

                          1 assortment box: stopper parts

                          1 assortment box: parts for Tapo

                             levelling plates, various gauges, air hose

                             Parts for shaft drive - loops for swing arms

Box C: 17 new shaft connectors

                             1 stroboscope

                             2 suction hoses - stretching nozzle, inlet brakes

                             4 dividing rings- thread accumulator

Box D: 2 spreader holders + accessories

                             4 front nozzles complete

                             Cable clamps

                             3 stoppers for thread accumulator

                             1 proximity switch

                             Sensors for stopper (thread accumulator)

                             Electronic parts - various

                             cables

Box E: 10 adapters - warp beam

                          14 leno bobbins

                            1 handwheel

Carton F: 6 metal clamps

                          4 solenoid valves

                          2 pressure regulators with hose

                             Various panelling

2 temple mountings

Box G: 16 balloon breakers for coil stands

                             12 compressed air threaders

                             1 electronics card for Leno (leno)

                             1 controller for Polsa-Eltex

                             5 motors for weft shears

                             1 motor (unknown function)

                             4 axles for weft shears

                             1 maintenance folder

                             1 folder spare parts JAT 710

                             1 folder spare parts JAT 810

                             1 folder Operating instructions JAT 710

                             1 folder JAT 810 operating instructions

Packed loose: 1 tool box with various tools for the Toyota weaving machines

                           1 long socket spanner for adjusting the controlled coating beam

10 new heald frames suitable for JAT 710 and JAT 810

5 used heald frames with heddles

2 used wap beams 1.100 mm flanges

Reeds: Bluereed 81/10- 192,09 cm

                            75/10- 202,47 cm

                            83,23/10- 168,57 cm

Takayama 83,23/10- 168,70 cm

                             88,21/10- 164,20
