STARLINGER STAREX POLYPROPYLENE TAPE EXTRUDING LINE, 1995 TYPE: 1000 MASTER -90/30 D

STARLINGER STAREX POLYPROPYLENE TAPE EXTRUDING LINE, 1995

TYPE: 1000 MASTER -90/30 D

Specification:

Motorize Mixer – 100 kgs per mix capacity

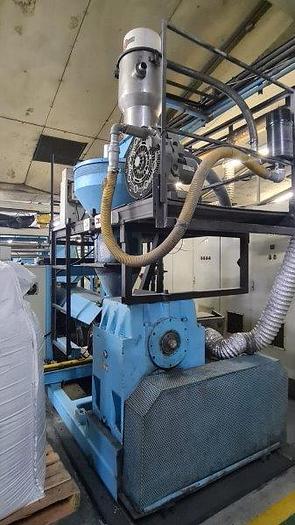

Dosing unit – Hopper 100 kgs capacity, sensor operated, vacuum type

Main Motor/drive – Siemens, 3 phase, 170KW

Screw and Barrel – Ave 3500 kgs/day capacity, Polypropylene

Die – Hanger type, 1000 mm Plastic flow width

Water bath – Cooling system, closed circuit 1000 L capacity

Cutting device – 1000 mm Plastic flow width capacity, ring tape spacers

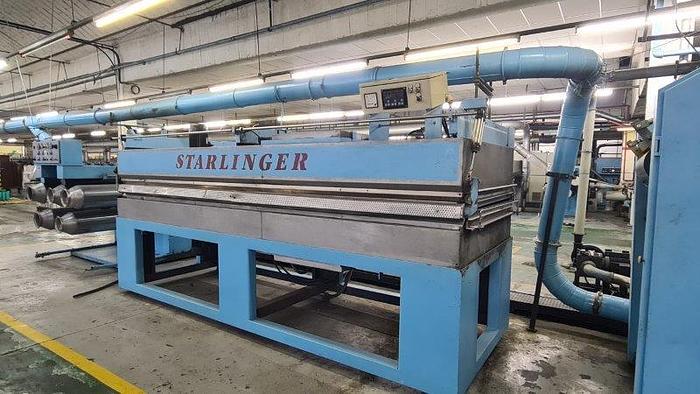

Oven – Hot air blower type, 58KW

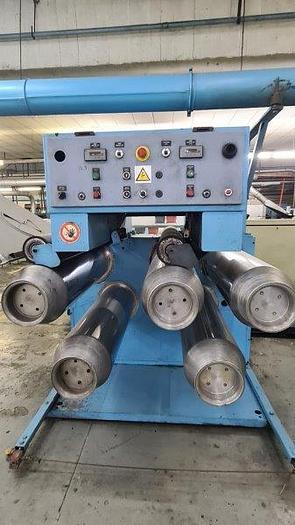

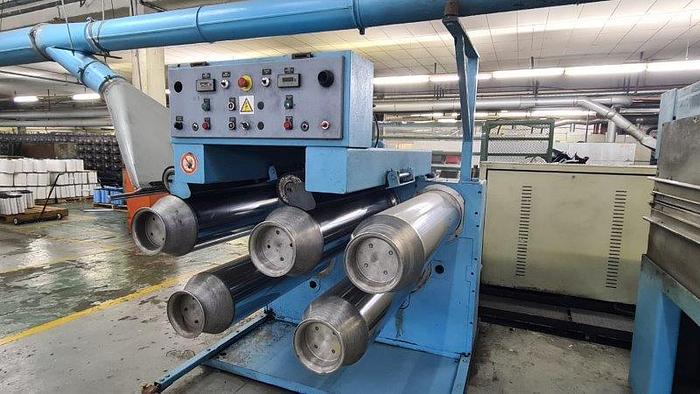

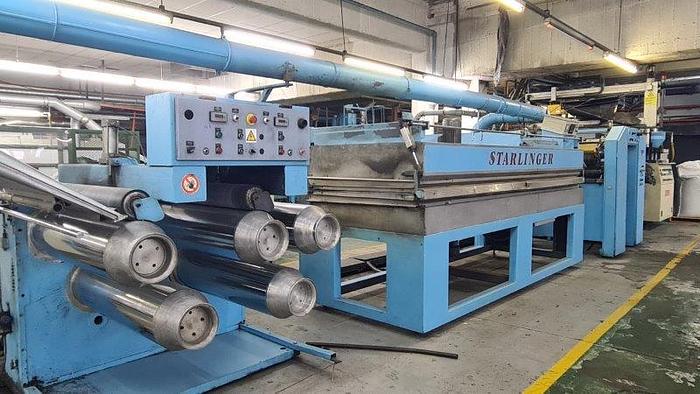

Goddets – 1 x segment godet from stretching unit to annealing 5 x rollers, oil heated

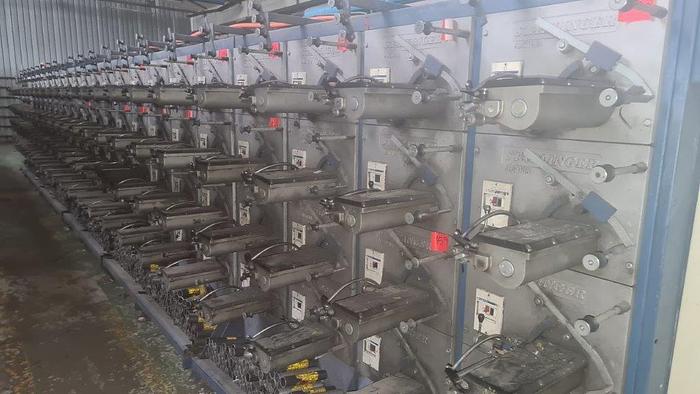

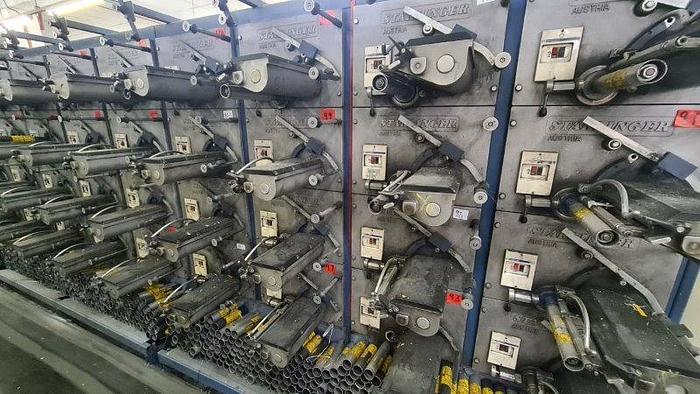

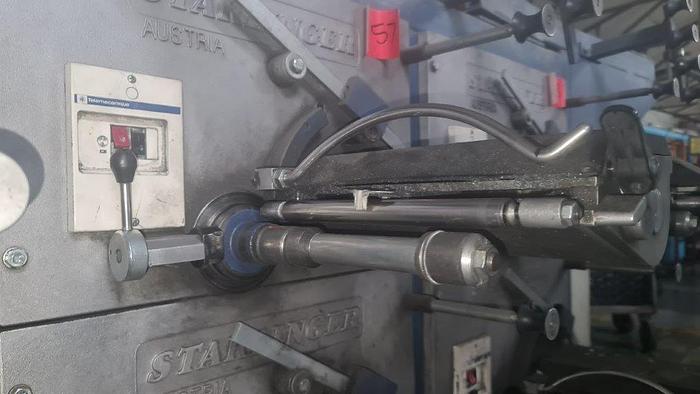

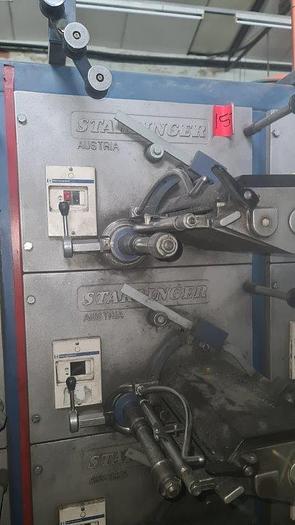

Winder Bank – Starlinger Fil23 winders (2003 manufactured), 176 individual winders

Tape Suction Unit – 2 x motor covering 1st godet to the last, 2 x entry

Cutting mill/ chipper unit – 1.7 KW rotor type blades single feed to hopper
